Contributing an Integration

Creating a Minimal Block demonstrated how to use scaffolding and make a block show up in the OpenOps UI. Let’s now see how you would create a fully functional integration with a third-party service. OpenOps integrates with Jira Cloud and Linear, but what if you use a different service for tracking your cloud optimization opportunities? Let’s see how you would create a block that integrates with JetBrains YouTrack via its REST API. The process of developing the YouTrack block will include:

Scaffolding the block and actions using the OpenOps CLI.
Implementing custom API key-based authentication that enables the user to set up a connection.
Developing a simple action that authenticates with YouTrack and retrieves data.
Developing an advanced action that involves several dynamic, interdependent properties and updates a YouTrack issue.

This is not a step-by-step guide. Instead, it’s an overview that highlights prominent parts of the process that you can use to develop your own blocks.

Scaffolding a new block

To scaffold a new block, you run the following command:

npm run cli blocks create

For a YouTrack integration, you would supply the following information to the CLI:

Block name: youtrack (lowercase).
Package name: leave blank to use the default.
Authentication type: select Custom (Custom properties).
Create opinionated folder structure with stubs for actions, tests, and common service layer: select Yes - Create full folder structure with stubs.

OpenOps generates a full project template inside packages/blocks/youtrack/, including package.json, TypeScript configuration files, ESLint and Jest configuration files, an entry point for the block at src/index.ts, and a starter test file at test/index.test.ts. Let’s take a closer look at the generated files.

src/index.ts

src/index.ts is the entry point to the new block. It uses the createBlock() function from the OpenOps block framework to create a new block. This function takes a number of arguments, of which the most important ones are:

auth: authentication implementation for the block. It defines which credentials the user needs to specify in the block’s connection properties to authenticate with the API that the block integrates with.
actions: an array that contains the actions that the block exposes. The scaffolded version includes a predefined action that allows making a custom API call to the block’s API.

import { createCustomApiCallAction } from '@openops/blocks-common';
import { createBlock, Property } from '@openops/blocks-framework';
import { BlockCategory } from '@openops/shared';
import { youtrackAuth } from './lib/auth';

export const youtrack = createBlock({
  displayName: 'Youtrack',
  auth: youtrackAuth,
  minimumSupportedRelease: '0.20.0',
  logoUrl: 'https://static.openops.com/blocks/youtrack.png',
  authors: [],
  categories: [BlockCategory.FINOPS],
  actions: [
    createCustomApiCallAction({
      baseUrl: () => 'https://api.youtrack.com',
      auth: youtrackAuth,
      additionalProps: {
        documentation: Property.MarkDown({
          value:
            'For more information, visit the [Youtrack API documentation](https://docs.youtrack.com/reference/introduction).',
        }),
      },
    }),
  ],
  triggers: [],
});

src/lib/auth.ts

Scaffolding generates a placeholder authentication implementation in a separate file. It uses the CustomAuth() helper function from the OpenOps block framework. The function takes several parameters, of which the most important ones are:

props: an object that defines the inputs required to authenticate with the service that the block integrates with.
validate: a function for optional validation of the inputs defined in props.

import { BlockAuth, Property } from '@openops/blocks-framework';

export const youtrackAuth = BlockAuth.CustomAuth({
  authProviderKey: 'youtrack',
  authProviderDisplayName: 'Youtrack',
  authProviderLogoUrl: 'https://static.openops.com/blocks/youtrack.png',
  description: 'Configure your Youtrack connection',
  required: true,
  props: {
    apiKey: Property.SecretText({
      displayName: 'API Key',
      required: true,
    }),
    baseUrl: Property.ShortText({
      displayName: 'Base URL',
      description: 'The base URL for Youtrack API',
      required: true,
    }),
  },
  validate: async ({ auth }) => {
    // Add validation logic here
    return { valid: true };
  },
});

Project files

OpenOps uses Nx as its build system. The project.json file defines how the new block is built, tested, and linted within the Nx workspace. It specifies the source root, output path, TypeScript configuration, package entry points, and assets. It also declares executors for build (@nx/js:tsc), test (@nx/jest:jest), and lint (@nx/eslint:lint).

{
  "name": "blocks-youtrack",
  "$schema": "../../../node_modules/nx/schemas/project-schema.json",
  "sourceRoot": "packages/blocks/youtrack/src",
  "projectType": "library",
  "tags": [],
  "targets": {
    "build": {
      "executor": "@nx/js:tsc",
      "outputs": ["{options.outputPath}"],
      "options": {
        "outputPath": "dist/packages/blocks/youtrack",
        "tsConfig": "packages/blocks/youtrack/tsconfig.lib.json",
        "packageJson": "packages/blocks/youtrack/package.json",
        "main": "packages/blocks/youtrack/src/index.ts",
        "assets": ["packages/blocks/youtrack/*.md"],
        "buildableProjectDepsInPackageJsonType": "dependencies",
        "updateBuildableProjectDepsInPackageJson": true
      }
    },
    "test": {
      "executor": "@nx/jest:jest",
      "outputs": ["{workspaceRoot}/coverage/{projectRoot}"],
      "options": {
        "jestConfig": "packages/blocks/youtrack/jest.config.ts"
      }
    },
    "lint": {
      "executor": "@nx/eslint:lint",
      "outputs": ["{options.outputFile}"]
    }
  }
}

package.json is a minimal metadata file that declares the block’s name and version within the Nx workspace. Unlike typical npm packages, this file isn’t meant for publication to the npm registry. Instead, it helps Nx identify the project and marks the block as a versioned unit within the larger repository.

{
  "name": "@openops/block-youtrack",
  "version": "0.0.1"
}

If your block requires additional dependencies, such as an SDK for the service you’re integrating with, you can add them to the dependencies section of package.json.

Test files

test/index.test.ts is a stub Jest test fixture that includes a few sample tests for the block:

import { youtrack } from '../src/index';

describe('block declaration tests', () => {
  test('should return block with correct authentication', () => {
    expect(youtrack.auth).toMatchObject({
      type: 'CUSTOM_AUTH',
      required: true,
      authProviderKey: 'youtrack',
      authProviderDisplayName: 'Youtrack',
      authProviderLogoUrl: 'https://static.openops.com/blocks/youtrack.png',
    });
  });

  test('should return block with correct number of actions', () => {
    expect(Object.keys(youtrack.actions()).length).toBe(1);
    expect(youtrack.actions()).toMatchObject({
      custom_api_call: {
        name: 'custom_api_call',
        requireAuth: true,
      },
    });
  });
});

You can run these tests using nx test blocks-youtrack. There’s also a Jest configuration file, jest.config.ts, which inherits shared settings from the OpenOps Jest preset, references a TypeScript config file, defines recognized file extensions, and specifies where to store code coverage reports:

export default {
  displayName: 'blocks-youtrack',
  preset: '../../../jest.preset.js',
  setupFiles: ['../../../jest.env.js'],
  testEnvironment: 'node',
  transform: {
    '^.+\\.[tj]s$': ['ts-jest', { tsconfig: '<rootDir>/tsconfig.spec.json' }],
  },
  moduleFileExtensions: ['ts', 'js', 'html'],
  coverageDirectory: '../../../coverage/packages/blocks/youtrack',
};

TypeScript configuration files

Scaffolding generates three TypeScript configuration files: tsconfig.json, tsconfig.lib.json, and tsconfig.spec.json. tsconfig.json is the base config for the block. It extends the workspace’s root tsconfig.base.json and enforces strict compiler options but doesn’t include any source files directly. Instead, it references the other two config files, serving as an entry point for both:

{
  "extends": "../../../tsconfig.base.json",
  "compilerOptions": {
    "module": "commonjs",
    "forceConsistentCasingInFileNames": true,
    "strict": true,
    "noImplicitOverride": true,
    "noPropertyAccessFromIndexSignature": true,
    "noImplicitReturns": true,
    "noFallthroughCasesInSwitch": true
  },
  "files": [],
  "include": [],
  "references": [
    {
      "path": "./tsconfig.lib.json"
    },
    {
      "path": "./tsconfig.spec.json"
    }
  ]
}

tsconfig.lib.json applies to the block’s source code. It outputs compiled files to dist/out-tsc, generates type declarations, and includes only non-test TypeScript files under src/:

{
  "extends": "./tsconfig.json",
  "compilerOptions": {
    "module": "commonjs",
    "outDir": "../../../dist/out-tsc",
    "declaration": true,
    "types": ["node"]
  },
  "exclude": ["jest.config.ts", "src/**/*.spec.ts", "src/**/*.test.ts"],
  "include": ["src/**/*.ts"]
}

tsconfig.spec.json is tailored for testing. It includes test and declaration files and configures Jest typings:

{
  "extends": "./tsconfig.json",
  "compilerOptions": {
    "outDir": "../../../dist/out-tsc",
    "module": "commonjs",
    "types": ["jest", "node"]
  },
  "include": [
    "jest.config.ts",
    "src/**/*.test.ts",
    "src/**/*.spec.ts",
    "src/**/*.d.ts"
  ]
}

Other files

.eslintrc.json defines JavaScript and TypeScript linting behavior for the block, extending the OpenOps repository’s root ESLint configuration. The overrides section provides placeholders for block-specific linting rules if you want to introduce them. README.md stubs out documentation for the block.

Post-scaffolding cleanup

OpenOps may alter the spelling of your block’s display name during scaffolding, so review this and run search and replace if needed. For example, with YouTrack it didn’t use the proper casing for the product name, generating “Youtrack” instead of “YouTrack”.

Product logo

OpenOps also generates a stub logo URL at the static.openops.com domain, which doesn’t exist. To see your product’s logo in the OpenOps UI during development, replace the stub logo URL with a URL you control. For example, for YouTrack, the stub URL https://static.openops.com/blocks/youtrack.png can be replaced with a live YouTrack logo URL. When you open a PR to the OpenOps repository, the OpenOps team will upload your product’s logo to the OpenOps static server. Once this is done, you’ll need to replace your logo URL in the PR with the OpenOps-hosted one.

Implementing authentication

Now that you have a block, you could start building its actions. However, unless your block interacts with a publicly accessible API, you need to provide the user with a way to authenticate with the API that your block is built on. How you implement authentication defines what the user sees when they try to create a new connection for your block. Scaffolding generated a placeholder authentication implementation and referenced it from the YouTrack block’s entry point. What’s left is to implement the actual authentication logic in the src/lib/auth.ts file. As a reminder, here’s what the scaffolded file initially looked like:

import { BlockAuth, Property } from '@openops/blocks-framework';

export const youtrackAuth = BlockAuth.CustomAuth({
  authProviderKey: 'youtrack',
  authProviderDisplayName: 'Youtrack',
  authProviderLogoUrl: 'https://static.openops.com/blocks/youtrack.png',
  description: 'Configure your Youtrack connection',
  required: true,
  props: {
    apiKey: Property.SecretText({
      displayName: 'API Key',
      required: true,
    }),
    baseUrl: Property.ShortText({
      displayName: 'Base URL',
      description: 'The base URL for Youtrack API',
      required: true,
    }),
  },
  validate: async ({ auth }) => {
    // Add validation logic here
    return { valid: true };
  },
});

As you can see, this block uses the CustomAuth() helper function to define YouTrack authentication. There are other types of authentication, but CustomAuth() works best for YouTrack because, in addition to an API key, the user needs to specify a base URL. YouTrack can be cloud-hosted by JetBrains, with a unique base URL for each cloud instance, or self-hosted by customers. The values of the authProviderKey, authProviderDisplayName, authProviderLogoUrl, and required properties are fine as they are. What needs to be changed are the values of props, validate, and description. Let’s start with props.

Defining connection properties

props defines the inputs required to authenticate with the service provider that the block integrates with. Each of these inputs is an OpenOps UI component: it can be a regular or masked input field, a checkbox, a dropdown, and more. This component library is used not only for defining connections but also for defining the actions that a block exposes. The first property, apiKey, is for the user to provide a YouTrack API key (a.k.a. permanent token). The scaffolded version of this property uses the SecretText property type, which is a masked input field, and it’s exactly what we need for this kind of data. Let’s expand the scaffolded version of the property to include a description:

apiKey: Property.SecretText({
  required: true,
  displayName: 'API key',
  description:
    'The API key (permanent token) for your YouTrack installation.',
})

The second property, apiUrl, is for the user to provide the base URL of their YouTrack instance. This property is a regular input field. The scaffolded version is a good start, but we can improve it by adding a clearer description, providing a default value, and using a predefined validation rule for URLs:

apiUrl: Property.ShortText({
  displayName: 'Base URL',
  description:
    'The base URL of your YouTrack installation without a trailing slash.',
  required: true,
  validators: [Validators.url],
  defaultValue: 'https://your-instance.myjetbrains.com/youtrack',
})

Note that for this to compile, we need to extend the import from the @openops/blocks-framework package to include the Validators object:

import { BlockAuth, Property, Validators } from '@openops/blocks-framework';

Validators.url is not the only predefined validation rule. OpenOps provides a set of ready-to-use validation rules for value ranges, dates, emails, phone numbers, image formats, and more.

Adding custom validation

Adding predefined validation rules to properties is one way to enforce a specific format or pattern for user input. You can also add custom validation rules using the validate() function. Some blocks, such as Linear, use validate() to ensure that the API key conforms to a specific format. With YouTrack, there’s no need for this. Instead, it makes sense to check that the base URL doesn’t have a trailing slash, since YouTrack doesn’t normalize URLs with double slashes. Here’s how this could be done:

validate: async ({ auth }) => {
  if (auth.apiUrl.endsWith('/')) {
    return {
      valid: false,
      error: 'Base URL must not end with a slash',
    };
  } else {
    return { valid: true };
  }
}

The auth object passed to validate() contains the values of all the properties provided by the user. This lets you introduce additional checks on auth.apiUrl, which holds the entered base URL. You could also use validate() to try authenticating the user with a given API key. For example, the ServiceNow and Umbrella blocks make sample requests to their APIs to let the user know immediately if authentication fails.

Adding a Markdown description

When a user sets up a connection, they may not immediately know how to obtain an API key or another value required during connection setup. To guide them, use the description property. The best part about this property is that it isn’t limited to plain text — you can provide a Markdown-formatted string, and OpenOps will render it in the connection UI, between the title and the first input. For YouTrack, a Markdown description could look like this:

const markdown = `
To get your YouTrack API key:
Go to your YouTrack installation.
In the navigation menu, click your user profile icon, then click **Profile**.
Open the **Account Security** tab.
Under **Tokens**, click **New token**.
Give the new token a name and select **YouTrack** in the list of scopes.
Click **Create**.
Copy the token to your clipboard.`;

When providing a description as a separate variable, as shown here, remember to assign that variable to the description property:

description: markdown

Adding an interface

The last step in the src/lib/auth.ts file is to define an interface for the two authentication properties. This interface will be imported into the files that define the block’s actions to provide typing for the action parameters. For YouTrack authentication, the interface could look like this:

export interface YouTrackAuth {
  apiUrl: string;
  apiKey: string;
}

The resulting authentication code and connection UI

After implementing authentication, the src/lib/auth.ts file looks like this:

import { BlockAuth, Property, Validators } from '@openops/blocks-framework';

const markdown = `
To get your YouTrack API key:
1. Go to your YouTrack installation.
2. In the navigation menu, click your user profile icon, then click **Profile**.
3. Open the **Account Security** tab.
4. Under **Tokens**, click **New token**.
5. Give the new token a name and select **YouTrack** in the list of scopes.
6. Click **Create**.
7. Copy the token to your clipboard.`;

export const youtrackAuth = BlockAuth.CustomAuth({
  required: true,
  authProviderKey: 'youtrack',
  authProviderDisplayName: 'YouTrack',
  authProviderLogoUrl:
    'https://resources.jetbrains.com/storage/products/company/brand/logos/YouTrack_icon.png',
  description: markdown,
  props: {
    apiKey: Property.SecretText({
      required: true,
      displayName: 'API key',
      description:
        'The API key (permanent token) for your YouTrack installation.',
    }),
    apiUrl: Property.ShortText({
      displayName: 'Base URL',
      description:
        'The base URL of your YouTrack installation without a trailing slash.',
      required: true,
      validators: [Validators.url],
      defaultValue: 'https://your-instance.myjetbrains.com/youtrack',
    }),
  },
  validate: async ({ auth }) => {
    if (auth.apiUrl.endsWith('/')) {
      return {
        valid: false,
        error: 'Base URL must not end with a slash',
      };
    } else {
      return { valid: true };
    }
  },
});

export interface YouTrackAuth {
  apiUrl: string;
  apiKey: string;
}

With this code, if the user creates a new connection in OpenOps, they will see a connection type for YouTrack:

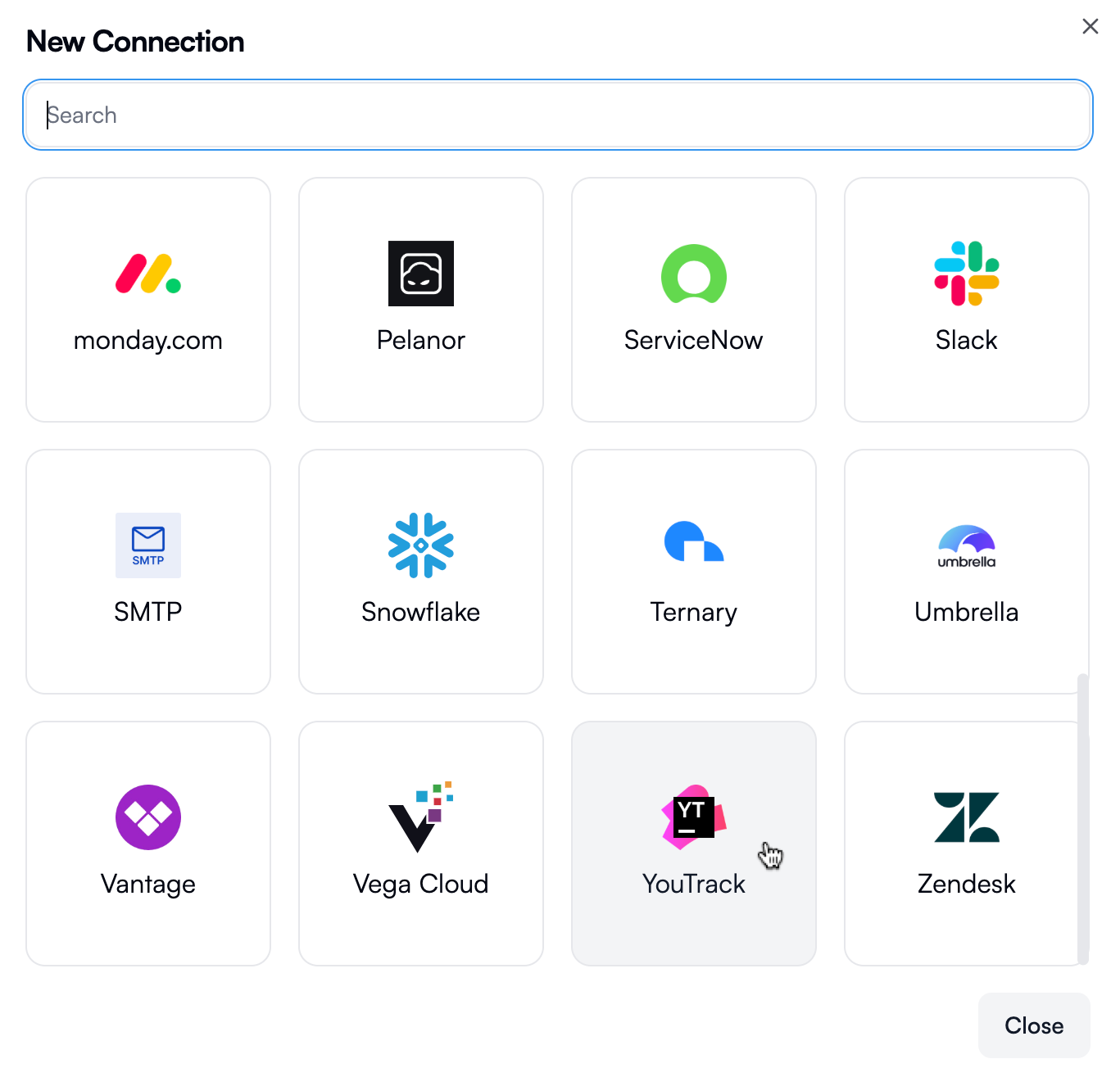

A YouTrack connection type in OpenOps UI

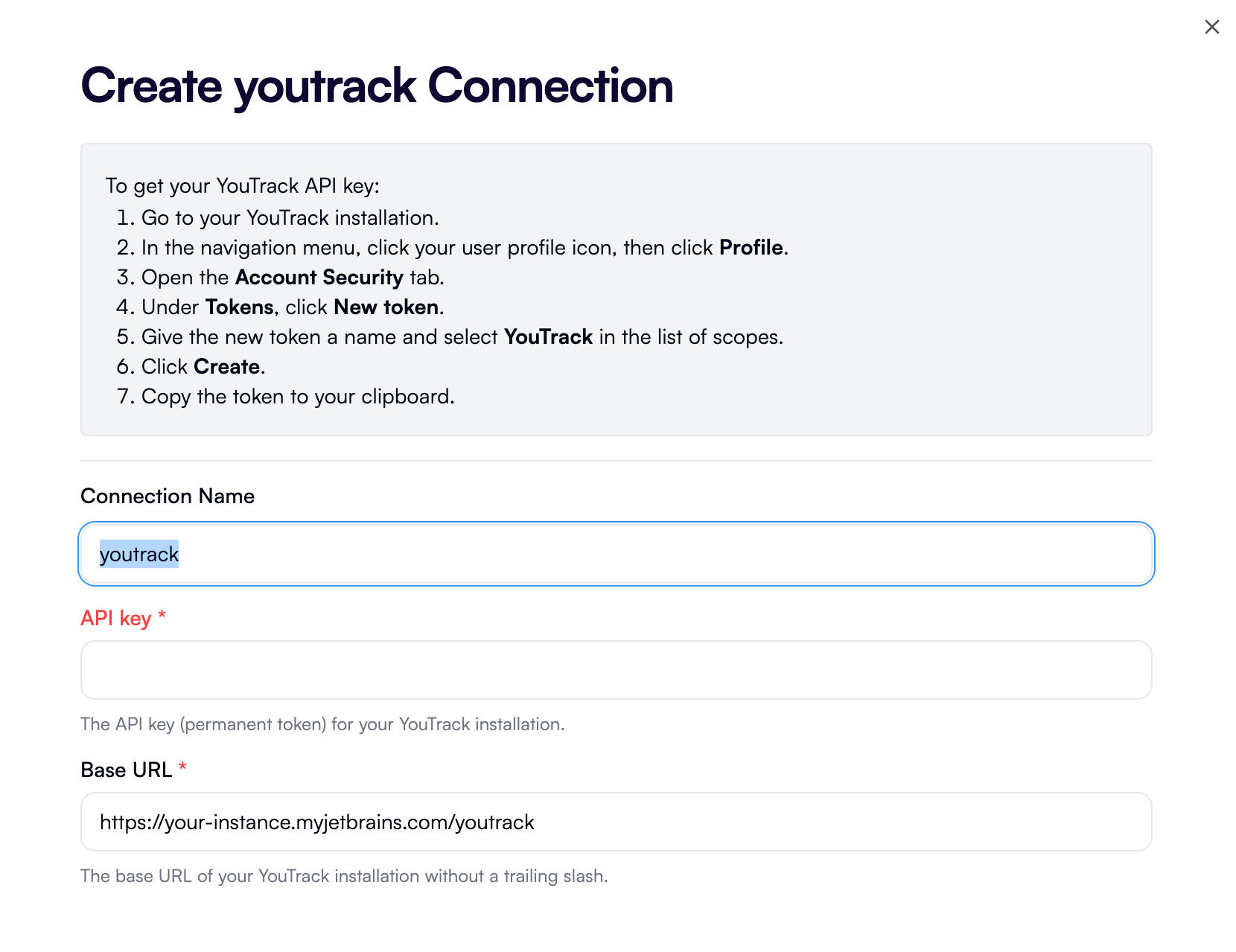

When they click the YouTrack logo, a connection dialog appears with a properly rendered Markdown description and three input fields. The Connection name field is predefined and prefilled with a suggested name for the connection. The other two fields, API key and Base URL, are the properties we defined earlier:

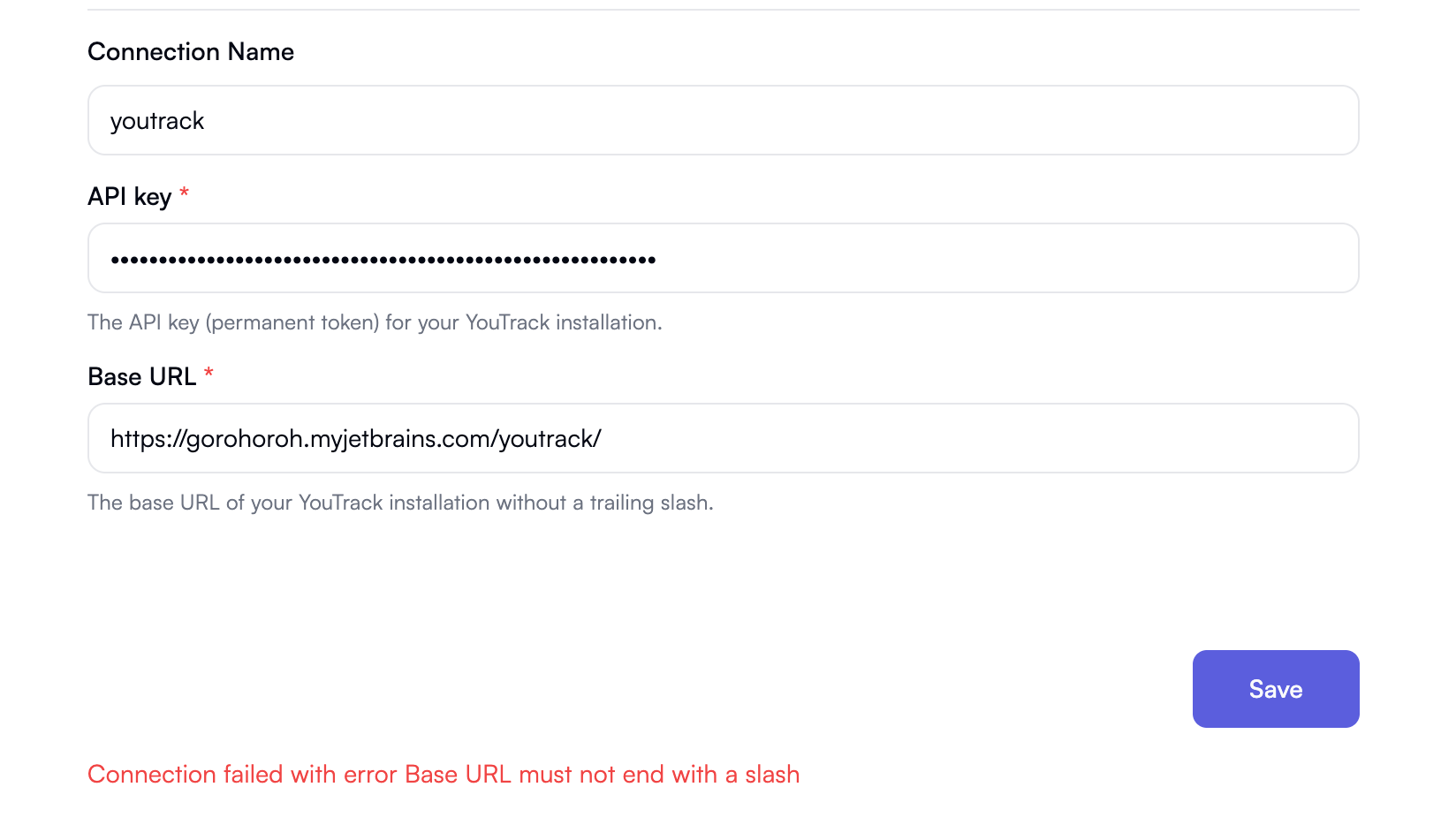

If the user enters a base URL with a trailing slash, the connection dialog executes the validation logic defined above and shows an error message:

Adding a simple action

We have a block, we’ve implemented authentication, and now it’s time to move on to the core of every integration: actions.

Removing the default action

When you scaffold a block, OpenOps adds an action called Custom API Call. While we could tweak it to work for YouTrack, let’s instead remove it and create a new action from scratch. After removing the scaffolded action, the src/index.ts file looks like this:

import { createBlock } from '@openops/blocks-framework';
import { BlockCategory } from '@openops/shared';
import { youtrackAuth } from './lib/auth';

export const youtrack = createBlock({
  displayName: 'YouTrack',
  auth: youtrackAuth,
  minimumSupportedRelease: '0.20.0',
  logoUrl:
    'https://resources.jetbrains.com/storage/products/company/brand/logos/YouTrack_icon.png',
  authors: [],
  categories: [BlockCategory.COLLABORATION],
  actions: [],
  triggers: [],
});

The actions array is now empty. Once we create an action, we’ll need to add a reference to it there.

Scaffolding the new action

OpenOps provides scaffolding for actions as well, so let’s run this in the terminal:

npm run cli actions create

The CLI asks four questions to define the new action:

Enter the block folder name: the folder where the block for the new action resides. For the existing YouTrack block, the value should be youtrack.
Enter the action display name: a human-readable name for the action that users will see in the UI. It’s also used to name the action’s file. In this case, we want an action that lists issues in a YouTrack instance, so let’s call it Get all issues.
Enter the action description: a brief, informative text shown in the UI to explain the action’s function and purpose. Let’s enter Retrieves all issues from a YouTrack instance.
Does this action modify data or state (e.g., create, update, delete)?: enter n for “No” as this is a read-only action.

With these values, the CLI scaffolds the action in a new file named get-all-issues.ts in the YouTrack block’s /src/lib/actions directory. The file initially looks like this:

import { createAction, Property } from '@openops/blocks-framework';

export const getAllIssues = createAction({
  isWriteAction: false,
  name: 'getAllIssues',
  displayName: 'Get all issues',
  description: 'Retrieves all issues from a YouTrack instance',
  props: {},
  async run() {
    // Action logic here
  },
});

As you can see, the scaffolding uses the createAction() helper function to define the action. The values of displayName and description are the same as the values provided in the CLI. The props property is empty, which means there are no configuration options for the user to set. For this first action, that’s fine; we’ll add another action with configuration options later.

Adding action execution logic

The scaffolded action has two prominent omissions:

It doesn’t have an auth property referencing the block’s authentication logic implemented earlier.
Its run() function, which should define the action logic, is empty.

Let’s fix these two issues by replacing the scaffolded version with the following:

import { httpClient, HttpMethod } from '@openops/blocks-common';
import { createAction } from '@openops/blocks-framework';
import { youtrackAuth, YouTrackAuth } from '../auth';

export const getAllIssues = createAction({
  isWriteAction: false,
  name: 'getAllIssues',
  displayName: 'Get all issues',
  description: 'Retrieves all issues from a YouTrack instance',
  props: {},
  auth: youtrackAuth,
  async run(context) {
    const endpoint =
      '/api/issues?query=for:%20me%20%23Unresolved%20&fields=id,project(shortName),numberInProject,summary,description&$top=10';
    const auth = context.auth as YouTrackAuth;
    const requestUrl = `${auth.apiUrl}${endpoint}`;

    const response = await httpClient.sendRequest({
      method: HttpMethod.GET,
      url: requestUrl,
      headers: {
        Authorization: `Bearer ${auth.apiKey}`,
        Accept: 'application/json',
        'Content-Type': 'application/json',
      },
    });

    return {
      _debug: {
        request: {
          method: 'GET',
          requestUrl,
        },
        response: {
          status: response.status,
        },
      },
      issues: response.body,
    };
  },
});

Here’s what’s changed:

The action now has an auth property that references the block’s authentication logic. Both the authentication logic and its interface are imported from the block’s auth.ts file.
The run() function now makes a request to a YouTrack API endpoint to retrieve the first 10 unresolved issues.
To make the API call, the run() function uses the imported httpClient constant, which is an OpenOps-provided wrapper around the Axios HTTP client. Some blocks, such as Linear and Jira, create separate functions for making HTTP requests to their APIs. This can be useful for providing extra error handling or leveraging existing SDKs, but for YouTrack, we can just use httpClient directly.
The return statement of the run() function defines what the user sees as the output of the action. The format of the returned object is up to the block author. In this case, we’re returning an object with two properties: _debug and issues. The _debug property is a container for debugging information useful during development. The issues property is an array of issues retrieved from the YouTrack instance.

Referencing the action from the block definition

Before testing the action, we need to add it to the block’s definition. In the src/index.ts file, we need to import the action and add it to the actions array:

import { createBlock } from '@openops/blocks-framework';
import { BlockCategory } from '@openops/shared';
import { getAllIssues } from './lib/actions/get-all-issues';
import { youtrackAuth } from './lib/auth';

export const youtrack = createBlock({
  displayName: 'YouTrack',
  auth: youtrackAuth,
  minimumSupportedRelease: '0.20.0',
  logoUrl:
    'https://resources.jetbrains.com/storage/products/company/brand/logos/YouTrack_icon.png',
  authors: [],
  categories: [BlockCategory.COLLABORATION],
  actions: [getAllIssues],
  triggers: [],
});

Testing the action

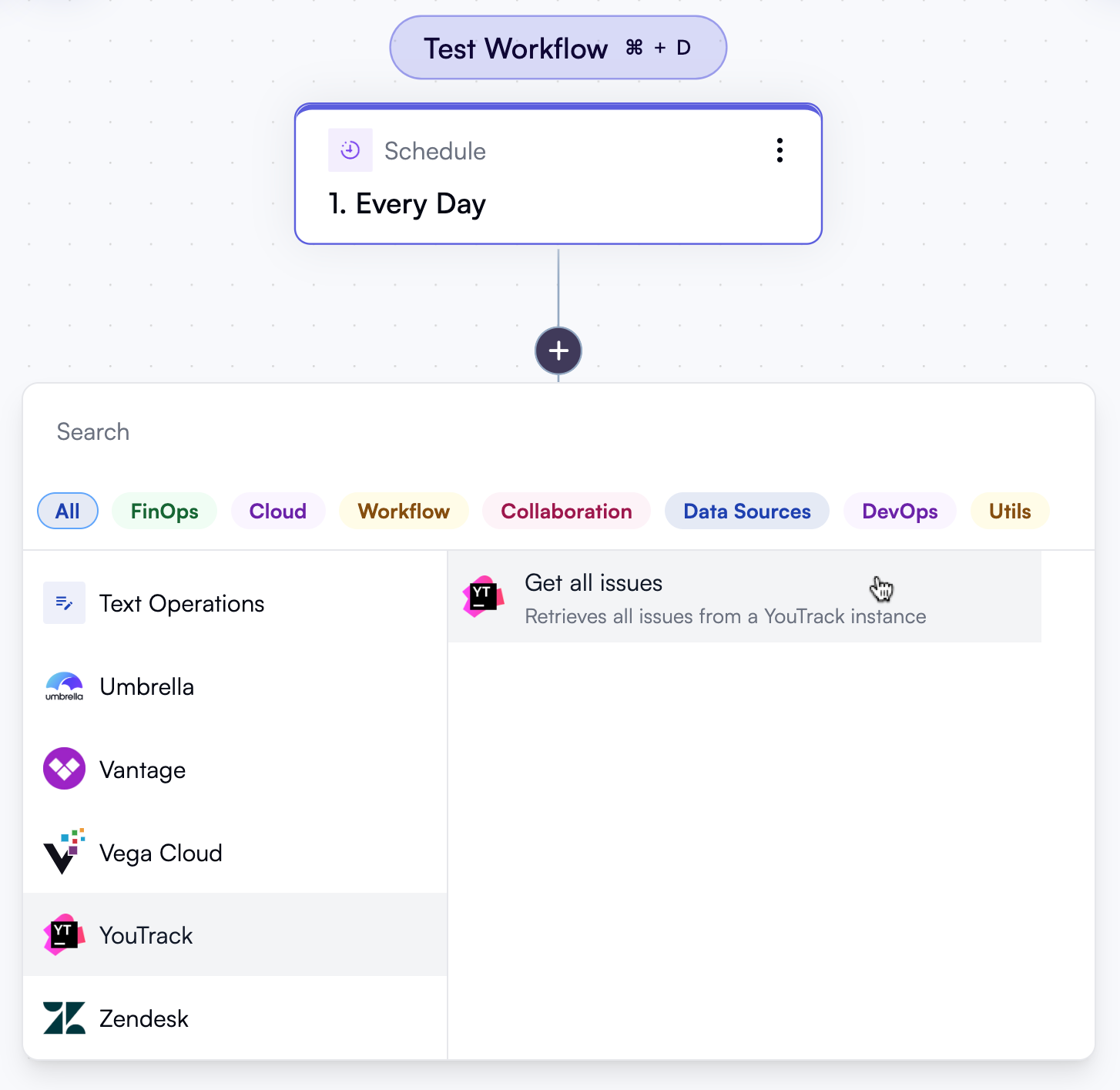

Let’s see what happens in the OpenOps UI now that the action is in place. First, the action is visible in the workflow editor and available for selection:

The Get All Issues action in the workflow editor

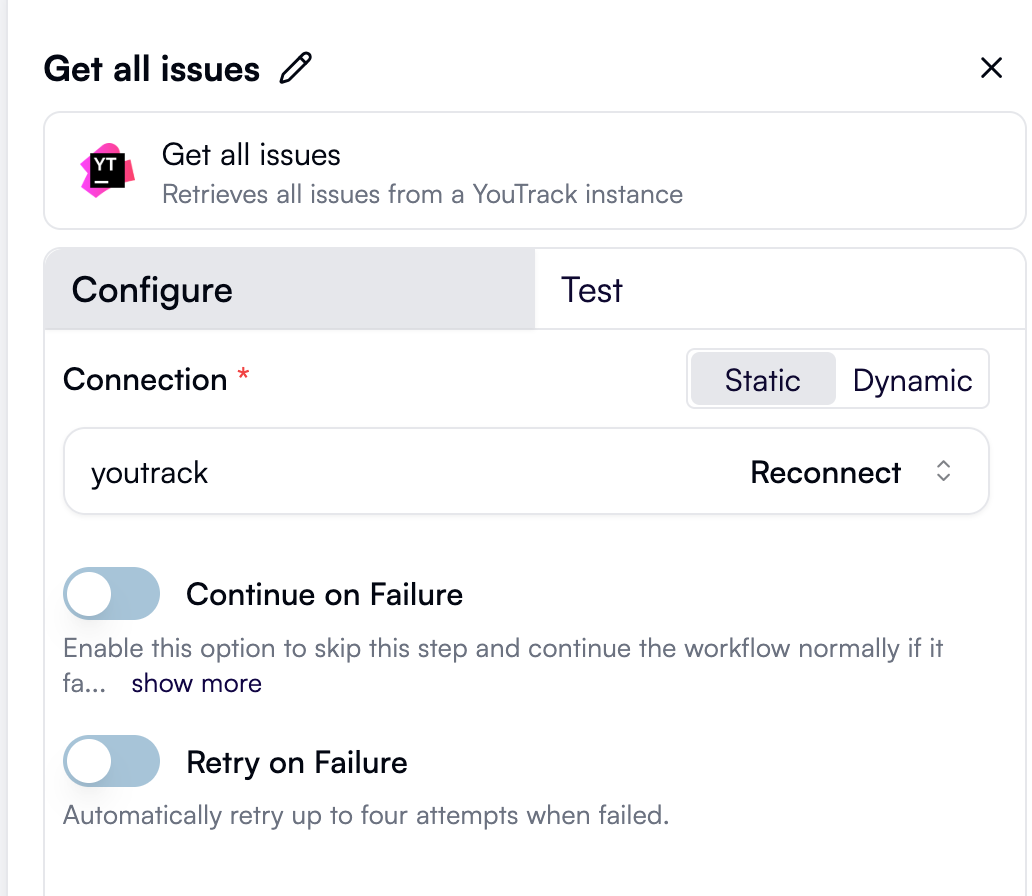

In the Configure tab of the action’s properties pane, there’s a connection selector, which is provided automatically because the action requires authentication. There are also two toggles, Continue on Failure and Retry on Failure, which are available for all actions. There are no properties specific to this action since we haven’t defined any.

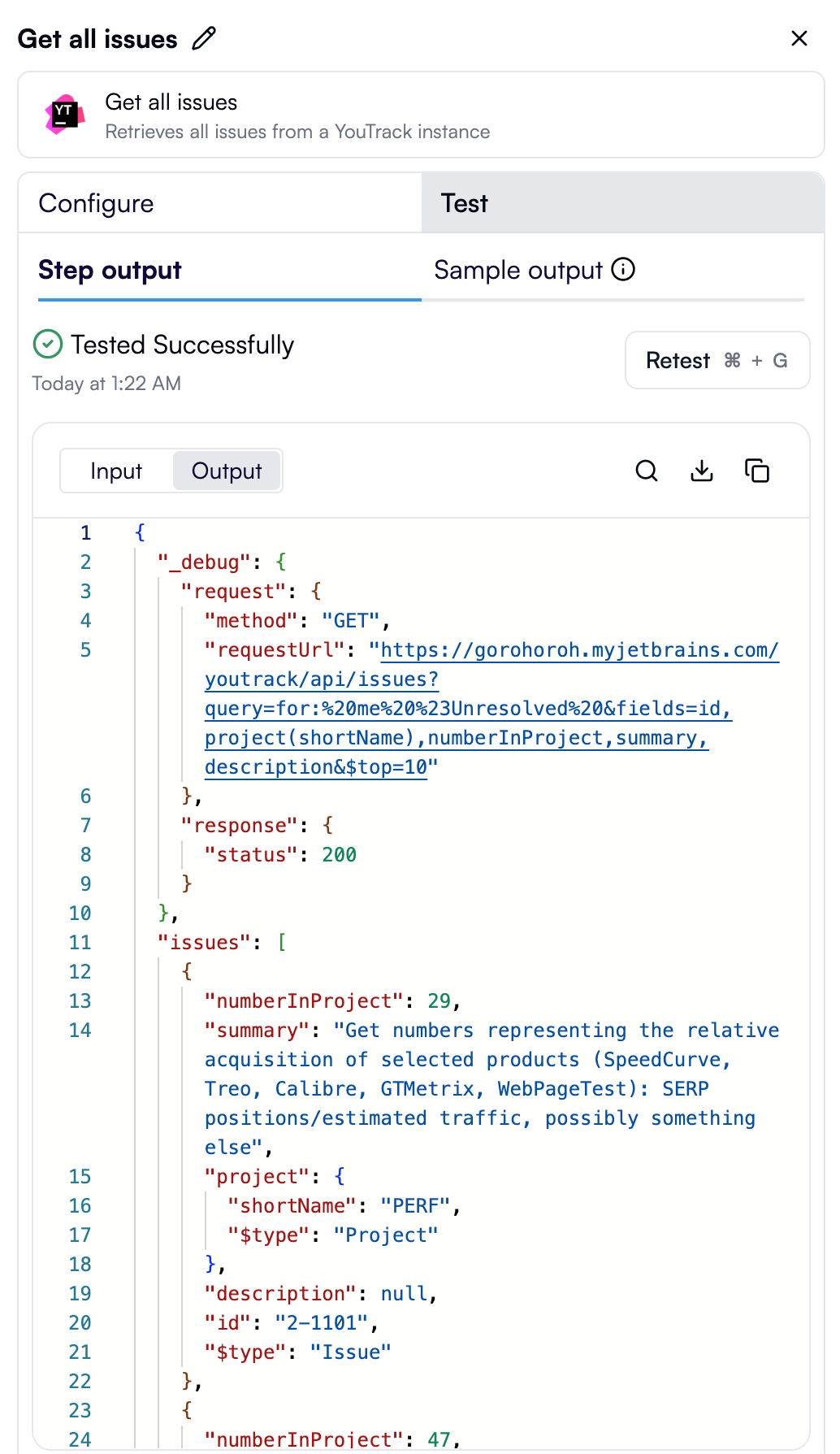

If we go to the Test tab and click Test Step, the action connects to the YouTrack instance configured in the connection and returns results in the format defined by the return statement in the action’s run() function:

Adding an action with properties

We’ve seen how to create a simple action that doesn’t require any configuration. More often than not, real-world actions do require the user to enter or select values in the properties pane, and the values of these properties often depend on one another. For a YouTrack integration, it makes sense to enable the user not only to get the list of issues but also to update specific issues. Let’s add a new action that allows the user to change the status of an issue. This action will include several configurable properties, and one of these properties will depend on the value of another.

Scaffolding the new action

First, let’s use the OpenOps scaffolding to create a stub for the new action:

npm run cli actions create

The values to provide to the CLI are as follows:

Enter the block folder name: as before, this should be youtrack.
Enter the action display name: let’s call the new action Change issue status.
Enter the action description: let’s describe the action as Updates the status of a given issue.
Does this action modify data or state (e.g., create, update, delete)?: it’s Y for “Yes” as this action does update the state of an external system.

With these values, the CLI scaffolds the action in a new file named change-issue-status.ts in the YouTrack block’s /src/lib/actions directory:

import { createAction, Property } from '@openops/blocks-framework';

export const changeIssueStatus = createAction({
  isWriteAction: false,
  name: 'changeIssueStatus',
  displayName: 'Change issue status',
  description: 'Updates the status of a given issue',
  props: {},
  async run() {
    // Action logic here
  },
});

Referencing the action from the block definition

This time, let’s reference the new action in the block’s definition (src/index.ts) before working on the action logic:

import { createBlock } from '@openops/blocks-framework';
import { BlockCategory } from '@openops/shared';
import { changeIssueStatus } from './lib/actions/change-issue-status';
import { getAllIssues } from './lib/actions/get-all-issues';
import { youtrackAuth } from './lib/auth';

export const youtrack = createBlock({
  displayName: 'YouTrack',
  auth: youtrackAuth,
  minimumSupportedRelease: '0.20.0',
  logoUrl:
    'https://resources.jetbrains.com/storage/products/company/brand/logos/YouTrack_icon.png',
  authors: [],
  categories: [BlockCategory.COLLABORATION],
  actions: [getAllIssues, changeIssueStatus],
  triggers: [],
});

Adding authentication and imports

Back in the action file, let’s start by referencing the authentication logic we defined earlier. While we’re at it, let’s also import the YouTrackAuth interface, along with the HTTP client that OpenOps provides:

import { httpClient, HttpMethod } from '@openops/blocks-common';
import { createAction, Property } from '@openops/blocks-framework';
import { YouTrackAuth, youtrackAuth } from '../auth';

export const changeIssueStatus = createAction({
  auth: youtrackAuth,
  isWriteAction: false,
  name: 'changeIssueStatus',
  displayName: 'Change issue status',
  description: 'Updates the status of a given issue',
  props: {},
  async run() {
    // Action logic here
  },
});

Adding an interface representing a YouTrack project

Before adding properties, let’s define an interface for the YouTrack project that the issue being updated belongs to. We’ll use it both in the property that helps select a project and in another property that depends on it. We could create the interface in a separate file, but placing it at the end of the change-issue-status.ts file works just as well:

interface YouTrackProject {
  id: string;
  name: string;
  shortName: string;
}

We can now add the first property to the props parameter of createAction(). This property represents a dropdown that lets the user select a YouTrack project that the issue being updated belongs to:

props: {
  project: Property.Dropdown({
    displayName: 'Project',
    required: true,
    refreshers: ['auth'],
    options: async ({ auth }) => {
      if (!auth) {
        return {
          options: [],
        };
      }

      const requestAuth = auth as YouTrackAuth;

      const projectsRequest = await httpClient.sendRequest({
        method: HttpMethod.GET,
        url: `${requestAuth.apiUrl}/api/admin/projects?fields=id,name,shortName`,
        headers: {
          Authorization: `Bearer ${requestAuth.apiKey}`,
          Accept: 'application/json',
          'Content-Type': 'application/json',
        },
      });

      return {
        options: projectsRequest.body.map((project: YouTrackProject) => {
          return {
            label: project.name,
            value: project,
          };
        }),
      };
    },
  }),
}

Here’s what happens inside the project property:

displayName is how the dropdown for this property is labeled in the UI.
required marks this property as required. The action will not run unless the user selects a value.
refreshers defines when the values of this property should be re-evaluated. The value auth in this array means that this property refreshes only when the connection used by this action changes.
options() defines the logic for populating the values of this property. A quick check on the value of the auth property allows returning an empty set of values when no connection is defined.
If a connection is defined, it’s safe to make a request to the YouTrack API to retrieve the list of projects in the connected YouTrack instance.
When the YouTrack API request succeeds, its response is transformed into an array of objects representing the projects. Each object has two properties: label and value. The label property is the text shown in dropdown items, representing the name of each YouTrack project. The value property contains additional information about the project retrieved from the API, including its ID and short name — these will be useful later when passed to another property.
The array is assigned to the options property of a new object that serves as the return value of the options() function.

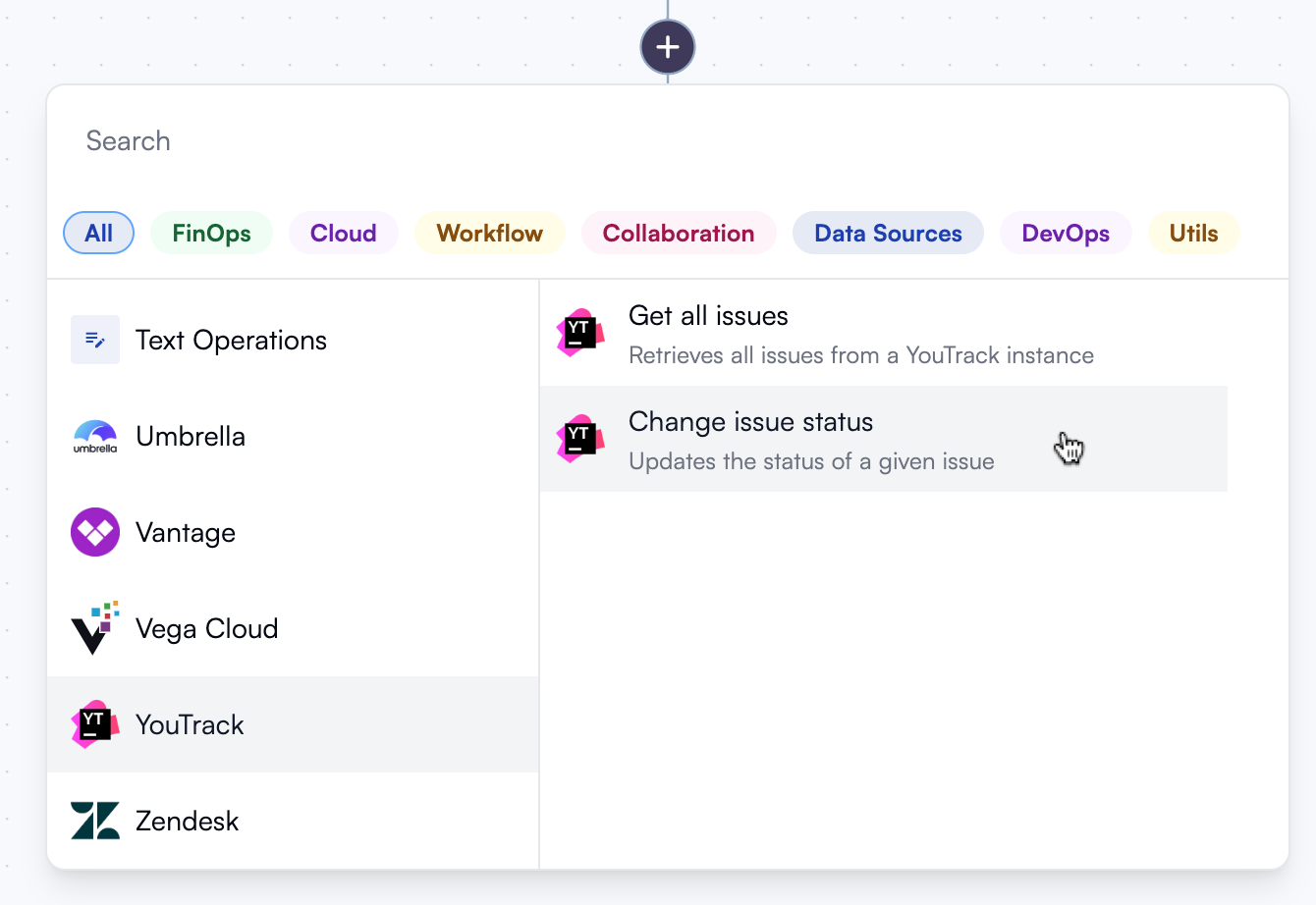

If we launch OpenOps, we can see that the new action is now available in the workflow editor:

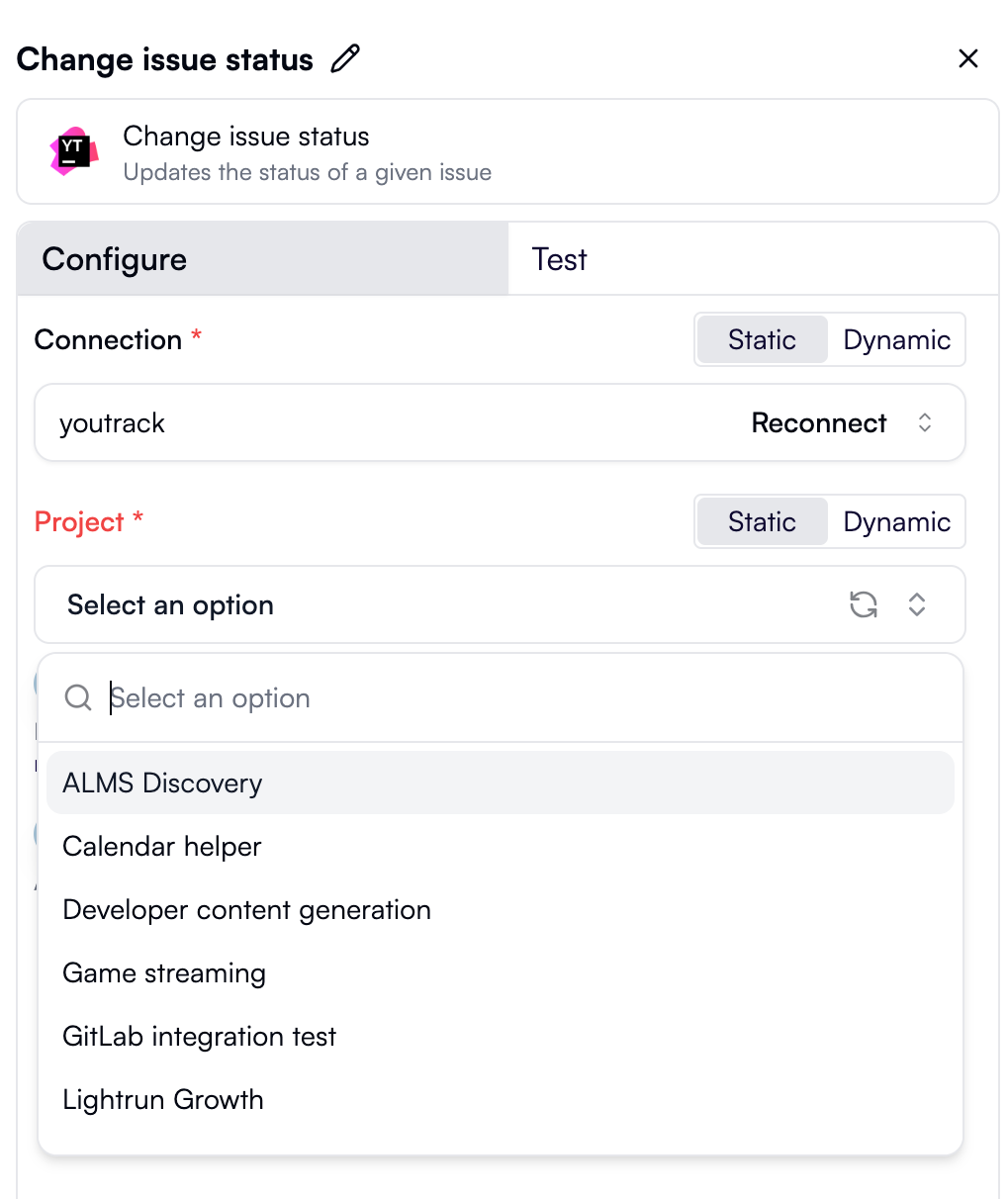

If we add the action and open the properties pane, we can see the Project dropdown listing the projects available in the connected YouTrack instance:

Adding an input property for an issue ID

The next property we’ll add to props is an input field that lets the user enter the numeric part of the ID of the issue to update. This type of property is simple, declarative, and doesn’t contain any custom logic:

props: {
  ...
  issueId: Property.Number({
    displayName: 'Number from issue ID',
    description: 'If issue ID is PRJ-47, enter 47 in this field',
    required: true,
  }),
}

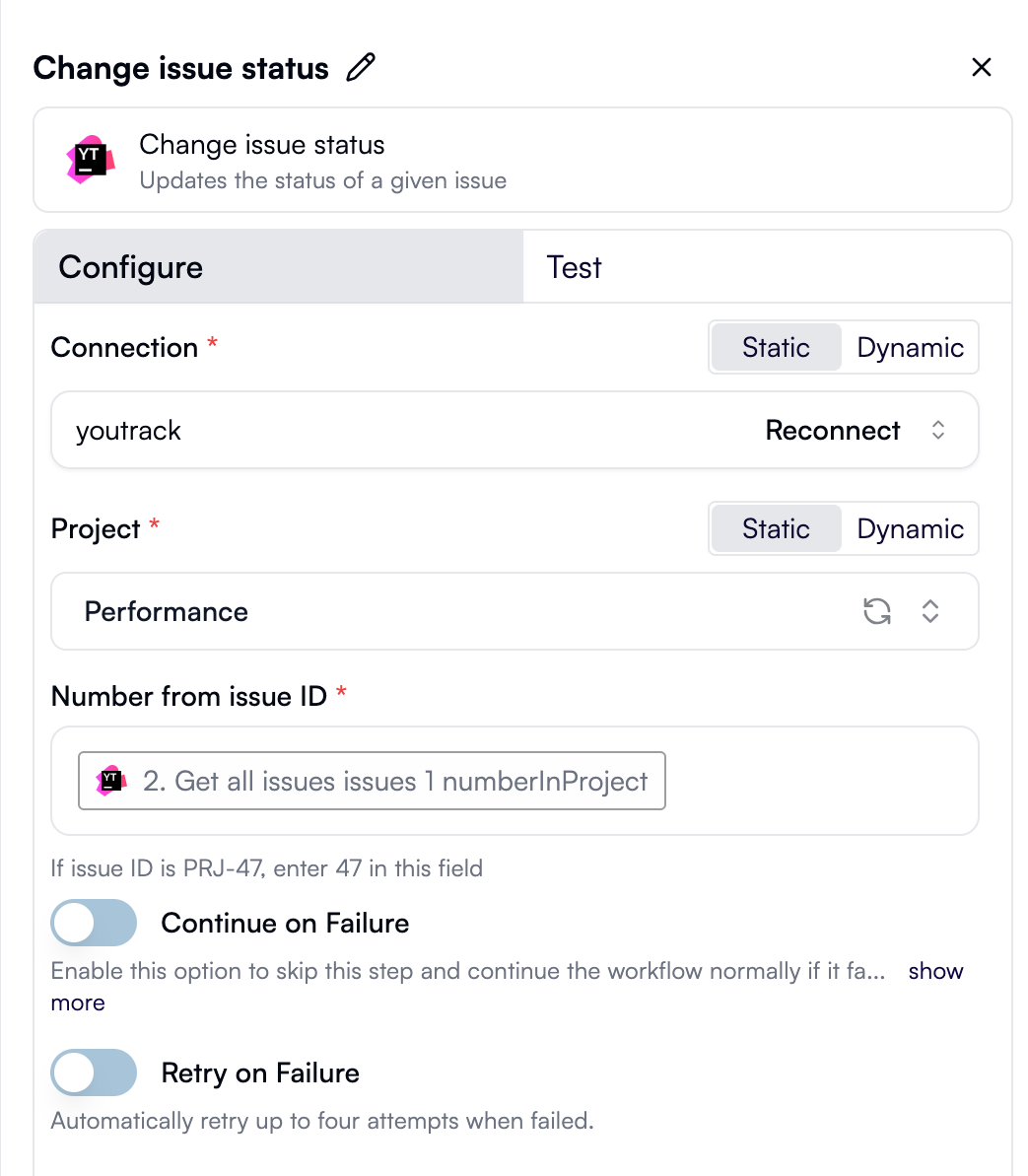

In the OpenOps UI, the user can either enter the value manually or use Data Selector to select a value from a previous step:

The final property we’ll add to props is another dropdown that lets the user select the new status for the issue. This property shows different values depending on what’s selected in the Project dropdown.

props: {
  ...
  newStatus: Property.Dropdown({
    displayName: 'New Status',
    refreshers: ['project'],
    required: true,
    options: async ({
      auth,
      project,
    }: {
      auth?: YouTrackAuth;
      project?: YouTrackProject;
    }) => {
      if (!auth || !project) {
        return {
          disabled: true,
          options: [],
          placeholder: 'Please authenticate and specify a project',
        };
      }

      const projectCustomFieldsResponse = await httpClient.sendRequest({
        method: HttpMethod.GET,
        url: `${auth.apiUrl}/api/admin/projects/${project.id}/customFields?fields=id,field(id,name,fieldType),bundle(id)`,
        headers: {
          Authorization: `Bearer ${auth.apiKey}`,
          Accept: 'application/json',
          'Content-Type': 'application/json',
        },
      });

      const statusBundle = projectCustomFieldsResponse.body.find(
        (item: { bundle?: { $type?: string } }) =>
          item.bundle?.$type === 'StateBundle',
      );

      if (!statusBundle) {
        return {
          disabled: true,
          options: [],
          placeholder: "The selected project doesn't have a Status field.",
        };
      }

      const statusBundleId = statusBundle.bundle.id;

      const statusValuesResponse = await httpClient.sendRequest({
        method: HttpMethod.GET,
        url: `${auth.apiUrl}/api/admin/customFieldSettings/bundles/enum/${statusBundleId}/values?fields=id,name`,
        headers: {
          Authorization: `Bearer ${auth.apiKey}`,
          Accept: 'application/json',
          'Content-Type': 'application/json',
        },
      });

      return {
        disabled: false,
        options: statusValuesResponse.body.map(
          (statusValue: { name: string; id: string }) => {
            return {
              label: statusValue.name,
              value: {
                newStatusValue: statusValue,
                bundle: statusBundle,
              },
            };
          },
        ),
      };
    },
  })
}

It’s quite a lot of code, but most of it deals with the specifics of the YouTrack API. Let’s break down what’s happening here:

The refreshers array contains project, meaning this dropdown refreshes every time a new value is selected in the Project dropdown. This is exactly what we want because different projects have different status values.
The options() function receives two parameters: auth, which represents the block authentication, and project, which holds the object representing the selected project. Remember the value property we returned from the options() of the project property? That’s what the project parameter contains here.
If either parameter is undefined — meaning a connection isn’t configured or a project isn’t selected — the dropdown is disabled.
Two calls are made to YouTrack API endpoints to retrieve the list of status values in the selected project. The first call uses the project parameter, which reflects the selected value of the Project dropdown. If the project doesn’t have a Status field, the dropdown is disabled and a placeholder is shown.
Once the list of status values is obtained, it’s returned as an array in the options property representing the dropdown items. The label is the name of each status shown in the dropdown, and value contains additional data that will be used later when the action is executed.

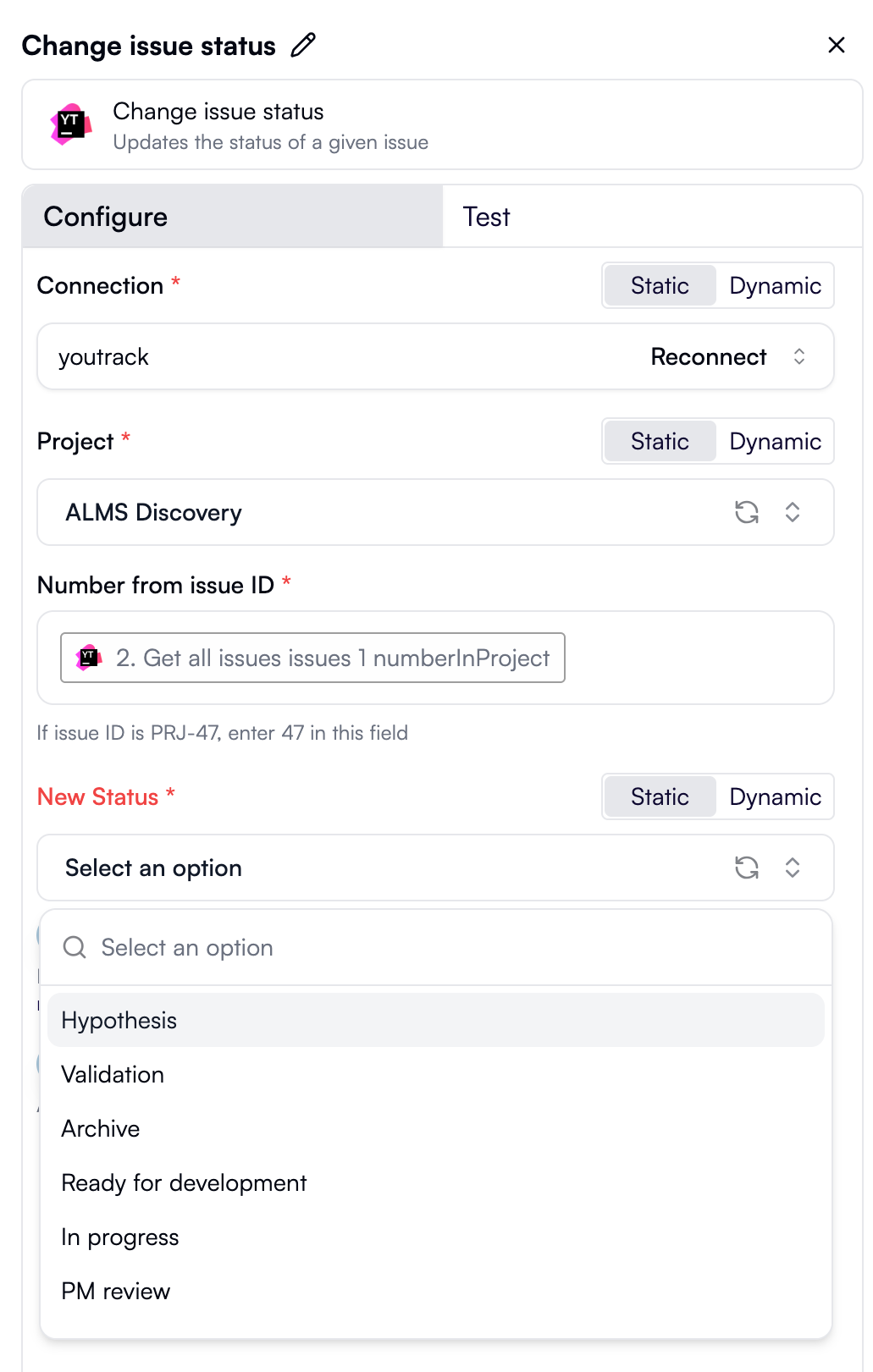

Looking at the OpenOps UI now, we can see that the New Status dropdown is available and lists status values for the selected project:

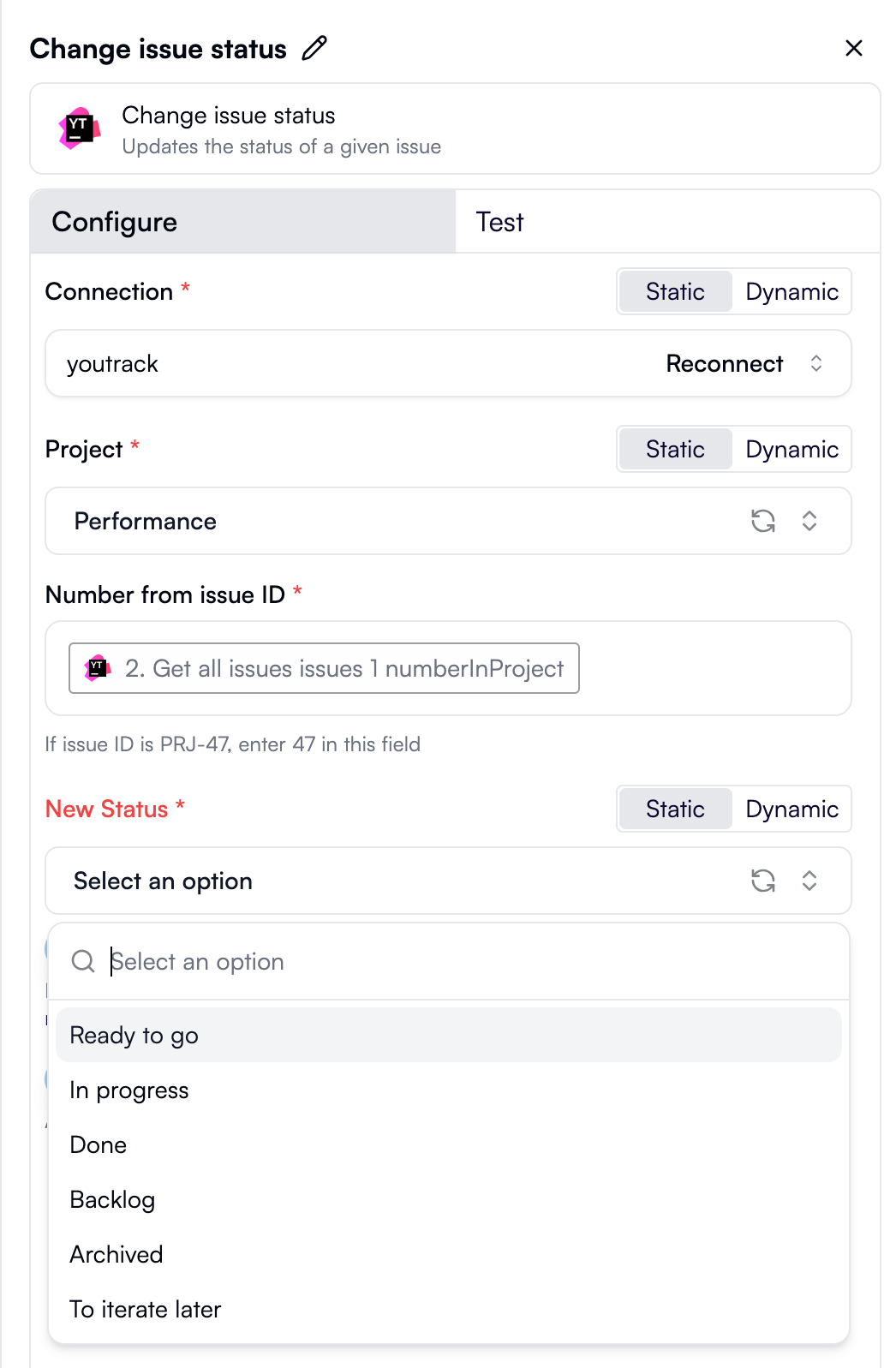

If we select another project with a different set of status values, the dropdown updates accordingly:

The New Status dropdown for a different project

Adding action execution logic

The last step is to add the logic executed when the action runs. This logic makes a request to the YouTrack API to update the issue’s status, using the inputs provided by the user in the properties we added above.

async run(context) {
  const { project, issueId, newStatus } = context.propsValue;
  const { auth } = context;

  const issueExistsResponse = await httpClient.sendRequest({
    method: HttpMethod.GET,
    url: `${auth.apiUrl}/api/issues/${project.shortName}-${issueId}?fields=id,summary,description,customFields(id,name,value(id,name))`,
    headers: {
      Authorization: `Bearer ${auth.apiKey}`,
      Accept: 'application/json',
      'Content-Type': 'application/json',
    },
  });

  const issueDbId = issueExistsResponse.body?.id;

  if (!issueDbId) {
    throw new Error(
      'The issue does not exist. Please fix inputs to specify an existing issue',
    );
  } else {
    const issueCustomField = issueExistsResponse.body?.customFields?.find(
      (x: { id: string; $type: string }) => x.id === newStatus.bundle.id,
    );

    const updateIssueStatusResponse = await httpClient.sendRequest({
      method: HttpMethod.POST,
      url: `${auth.apiUrl}/api/issues/${issueDbId}?fields=id,numberInProject,project,summary,description,customFields(id,name,value(id,name))`,
      headers: {
        Authorization: `Bearer ${auth.apiKey}`,
        Accept: 'application/json',
        'Content-Type': 'application/json',
      },
      body: {
        customFields: [
          {
            value: newStatus.newStatusValue,
            id: issueCustomField.id,
            $type: issueCustomField.$type,
          },
        ],
      },
    });

    return updateIssueStatusResponse.body;
  }
}

Here’s what’s happening in this function:

The run() function receives the context object, which contains extensive data about the current action and the workflow’s execution state, including the block authentication (context.auth) and the values of all the action’s properties (context.propsValue).
The first call to the YouTrack API checks that the specified issue exists. In that call, we’re using the values from both the Project dropdown and the Number from issue ID input field.
If the issue exists, we look for the part of its data that represents the status field. Once found, another YouTrack API call updates the status to the value specified in the New Status dropdown.
The updated issue data is returned from the run() function, and this is what the user sees as the output of the executed action.

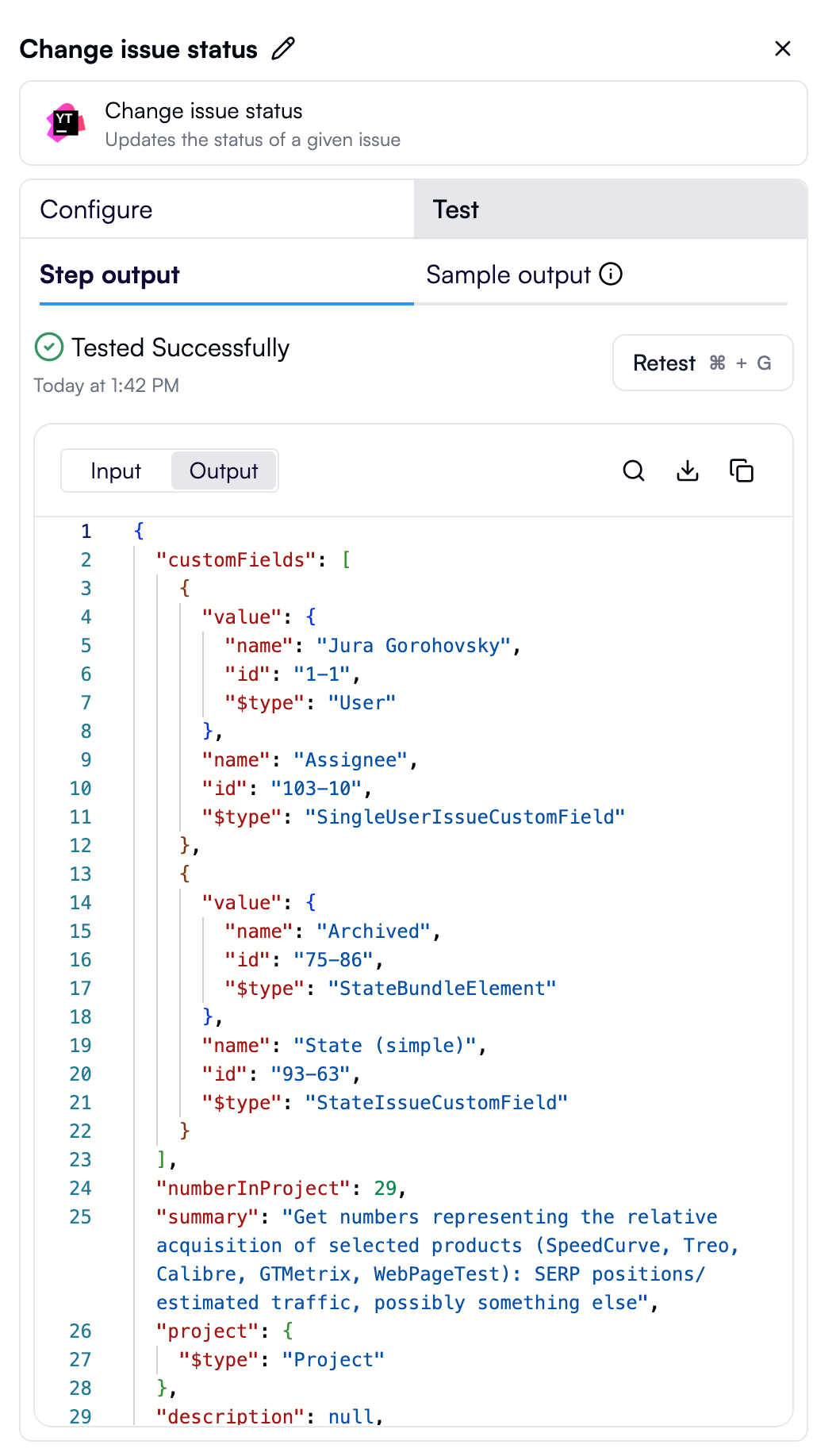

If we go to the workflow editor now and test the action, here’s the kind of output we should see:

The output of the Change Issue Status action

In this case, we’re simply returning the body of the response from the YouTrack API, but you could return an object with a different shape. That’s entirely up to you. This wraps up the Change issue status action. Since it uses several dynamic properties and the YouTrack API isn’t always succinct, the code for the action is fairly long. Here’s the full listing of the resulting change-issue-status.ts file:

Show Change Issue Status action code

import { httpClient, HttpMethod } from '@openops/blocks-common';
import { createAction, Property } from '@openops/blocks-framework';
import { YouTrackAuth, youtrackAuth } from '../auth';

export const changeIssueStatus = createAction({
  auth: youtrackAuth,
  isWriteAction: false,
  name: 'changeIssueStatus',
  displayName: 'Change issue status',
  description: 'Updates the status of a given issue',
  props: {
    project: Property.Dropdown({
      displayName: 'Project',
      required: true,
      refreshers: ['auth'],
      options: async ({ auth }) => {
        if (!auth) {
          return {
            options: [],
          };
        }

        const requestAuth = auth as YouTrackAuth;

        const projectsRequest = await httpClient.sendRequest({
          method: HttpMethod.GET,
          url: `${requestAuth.apiUrl}/api/admin/projects?fields=id,name,shortName`,
          headers: {
            Authorization: `Bearer ${requestAuth.apiKey}`,
            Accept: 'application/json',
            'Content-Type': 'application/json',
          },
        });

        return {
          options: projectsRequest.body.map((project: YouTrackProject) => {
            return {
              label: project.name,
              value: project,
            };
          }),
        };
      },
    }),
    issueId: Property.Number({
      displayName: 'Number from issue ID',
      description: 'If issue ID is PRJ-47, enter 47 in this field',
      required: true,
    }),
    newStatus: Property.Dropdown({
      displayName: 'New Status',
      refreshers: ['project'],
      required: true,
      options: async ({
        auth,
        project,
      }: {
        auth?: YouTrackAuth;
        project?: YouTrackProject;
      }) => {
        if (!auth || !project) {
          return {
            disabled: true,
            options: [],
            placeholder: 'Please authenticate and specify a project',
          };
        }

        const projectCustomFieldsResponse = await httpClient.sendRequest({
          method: HttpMethod.GET,
          url: `${auth.apiUrl}/api/admin/projects/${project.id}/customFields?fields=id,field(id,name,fieldType),bundle(id)`,
          headers: {
            Authorization: `Bearer ${auth.apiKey}`,
            Accept: 'application/json',
            'Content-Type': 'application/json',
          },
        });

        const statusBundle = projectCustomFieldsResponse.body.find(
          (item: { bundle?: { $type?: string } }) =>
            item.bundle?.$type === 'StateBundle',
        );

        if (!statusBundle) {
          return {
            disabled: true,
            options: [],
            placeholder: "The selected project doesn't have a Status field.",
          };
        }

        const statusBundleId = statusBundle.bundle.id;

        const statusValuesResponse = await httpClient.sendRequest({
          method: HttpMethod.GET,
          url: `${auth.apiUrl}/api/admin/customFieldSettings/bundles/enum/${statusBundleId}/values?fields=id,name`,
          headers: {
            Authorization: `Bearer ${auth.apiKey}`,
            Accept: 'application/json',
            'Content-Type': 'application/json',
          },
        });

        return {
          disabled: false,
          options: statusValuesResponse.body.map(
            (statusValue: { name: string; id: string }) => {
              return {
                label: statusValue.name,
                value: {
                  newStatusValue: statusValue,
                  bundle: statusBundle,
                },
              };
            },
          ),
        };
      },
    }),
  },
  async run(context) {
    const { project, issueId, newStatus } = context.propsValue;
    const { auth } = context;

    const issueExistsResponse = await httpClient.sendRequest({
      method: HttpMethod.GET,
      url: `${auth.apiUrl}/api/issues/${project.shortName}-${issueId}?fields=id,summary,description,customFields(id,name,value(id,name))`,
      headers: {
        Authorization: `Bearer ${auth.apiKey}`,
        Accept: 'application/json',
        'Content-Type': 'application/json',
      },
    });

    const issueDbId = issueExistsResponse.body?.id;

    if (!issueDbId) {
      throw new Error(
        'The issue does not exist. Please fix inputs to specify an existing issue',
      );
    } else {
      const issueCustomField = issueExistsResponse.body?.customFields?.find(
        (x: { id: string; $type: string }) => x.id === newStatus.bundle.id,
      );

      const updateIssueStatusResponse = await httpClient.sendRequest({
        method: HttpMethod.POST,
        url: `${auth.apiUrl}/api/issues/${issueDbId}?fields=id,numberInProject,project,summary,description,customFields(id,name,value(id,name))`,
        headers: {
          Authorization: `Bearer ${auth.apiKey}`,
          Accept: 'application/json',
          'Content-Type': 'application/json',
        },
        body: {
          customFields: [
            {
              value: newStatus.newStatusValue,
              id: issueCustomField.id,
              $type: issueCustomField.$type,
            },
          ],
        },
      });

      return updateIssueStatusResponse.body;
    }
  },
});

interface YouTrackProject {
  id: string;
  name: string;
  shortName: string;
}

Summary

This guide walked you through creating a fully functional third-party integration for OpenOps by building a JetBrains YouTrack block with two actions. Along the way, you learned techniques involved in developing OpenOps blocks, including:

Implementing custom authentication that requires specifying an API key and a base URL. To learn more about authentication types that OpenOps supports, see Authentication.
Adding configuration properties to actions, including dynamic, interdependent properties.
Using values returned by properties in other properties, as well as in the action’s execution logic.

To dive deeper into the internals of OpenOps blocks, explore the code of existing blocks or review past pull requests that added new blocks, such as Ternary, ServiceNow, and nOps.io.

Introduction to OpenOps

Getting Started with OpenOps

Workflow Management

Cloud Access

AI Assistance

Reporting and Analytics

Integrations

Contributing to OpenOps

Scaffolding a new block

src/index.ts

src/lib/auth.ts

Project files

Test files

TypeScript configuration files

Other files

Post-scaffolding cleanup

Product logo

Categories

Implementing authentication

Defining connection properties

Adding custom validation

Adding a Markdown description

Adding an interface

The resulting authentication code and connection UI

Adding a simple action

Removing the default action

Scaffolding the new action

Adding action execution logic

Referencing the action from the block definition

Testing the action

Adding an action with properties

Scaffolding the new action

Referencing the action from the block definition

Adding authentication and imports

Adding an interface representing a YouTrack project

Adding an input property for an issue ID

Adding action execution logic

Summary

Introduction to OpenOps

Getting Started with OpenOps

Workflow Management

Cloud Access

AI Assistance

Reporting and Analytics

Integrations

Contributing to OpenOps

​Scaffolding a new block

​src/index.ts

​src/lib/auth.ts

​Project files

​Test files

​TypeScript configuration files

​Other files

​Post-scaffolding cleanup

​Product logo

​Categories

​Implementing authentication

​Defining connection properties

​Adding custom validation

​Adding a Markdown description

​Adding an interface

​The resulting authentication code and connection UI

​Adding a simple action

​Removing the default action

​Scaffolding the new action

​Adding action execution logic

​Referencing the action from the block definition

​Testing the action

​Adding an action with properties

​Scaffolding the new action

​Referencing the action from the block definition

​Adding authentication and imports

​Adding an interface representing a YouTrack project

​Adding a dropdown property to select a project

​Adding an input property for an issue ID

​Adding a dropdown property for the new status

​Adding action execution logic

​Summary

Scaffolding a new block

src/index.ts

src/lib/auth.ts

Project files

Test files

TypeScript configuration files

Other files

Post-scaffolding cleanup

Product logo

Categories

Implementing authentication

Defining connection properties

Adding custom validation

Adding a Markdown description

Adding an interface

The resulting authentication code and connection UI

Adding a simple action

Removing the default action

Scaffolding the new action

Adding action execution logic

Referencing the action from the block definition

Testing the action

Adding an action with properties

Scaffolding the new action

Referencing the action from the block definition

Adding authentication and imports

Adding an interface representing a YouTrack project

Adding a dropdown property to select a project

Adding an input property for an issue ID

Adding a dropdown property for the new status

Adding action execution logic

Summary
